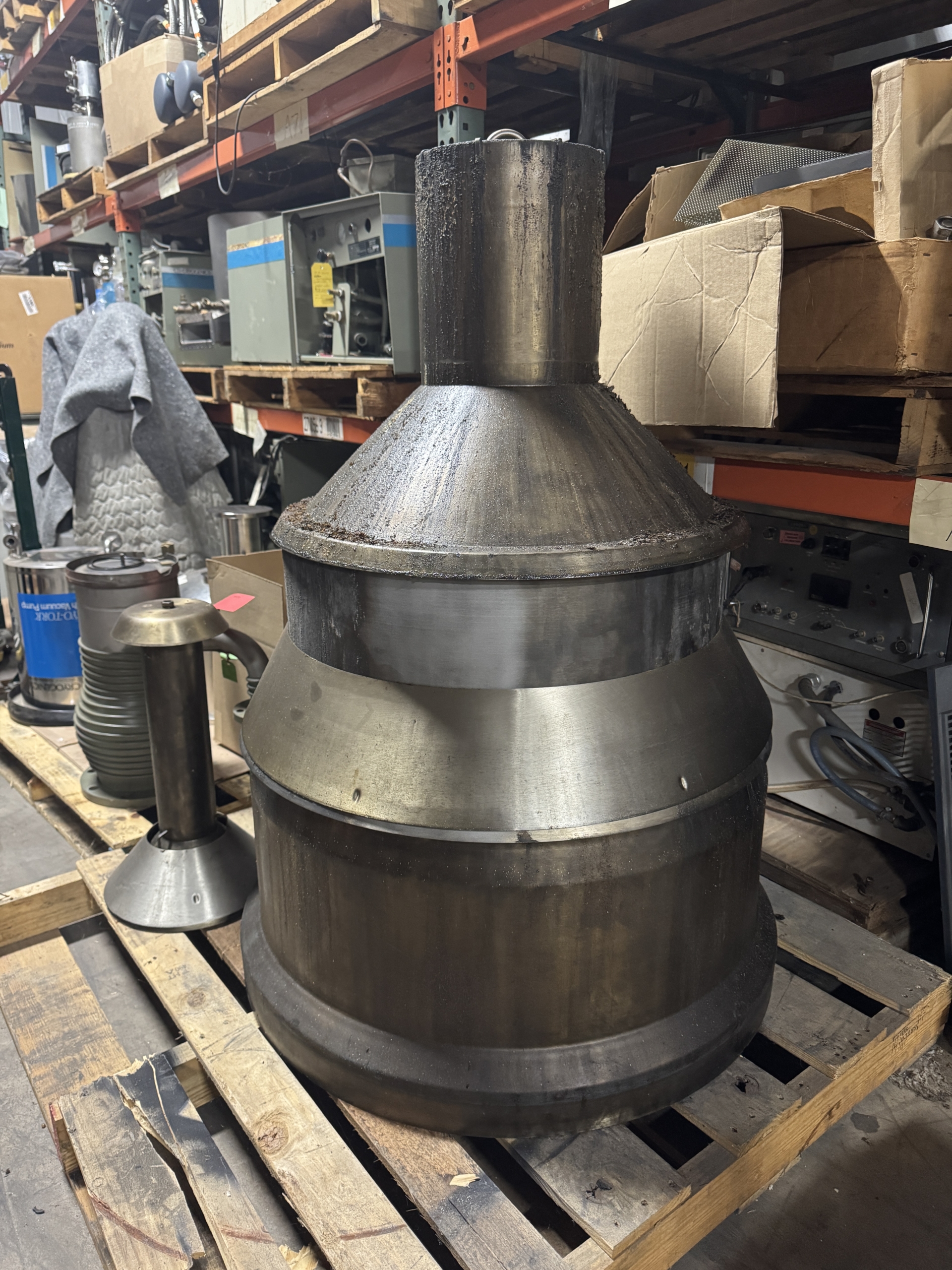

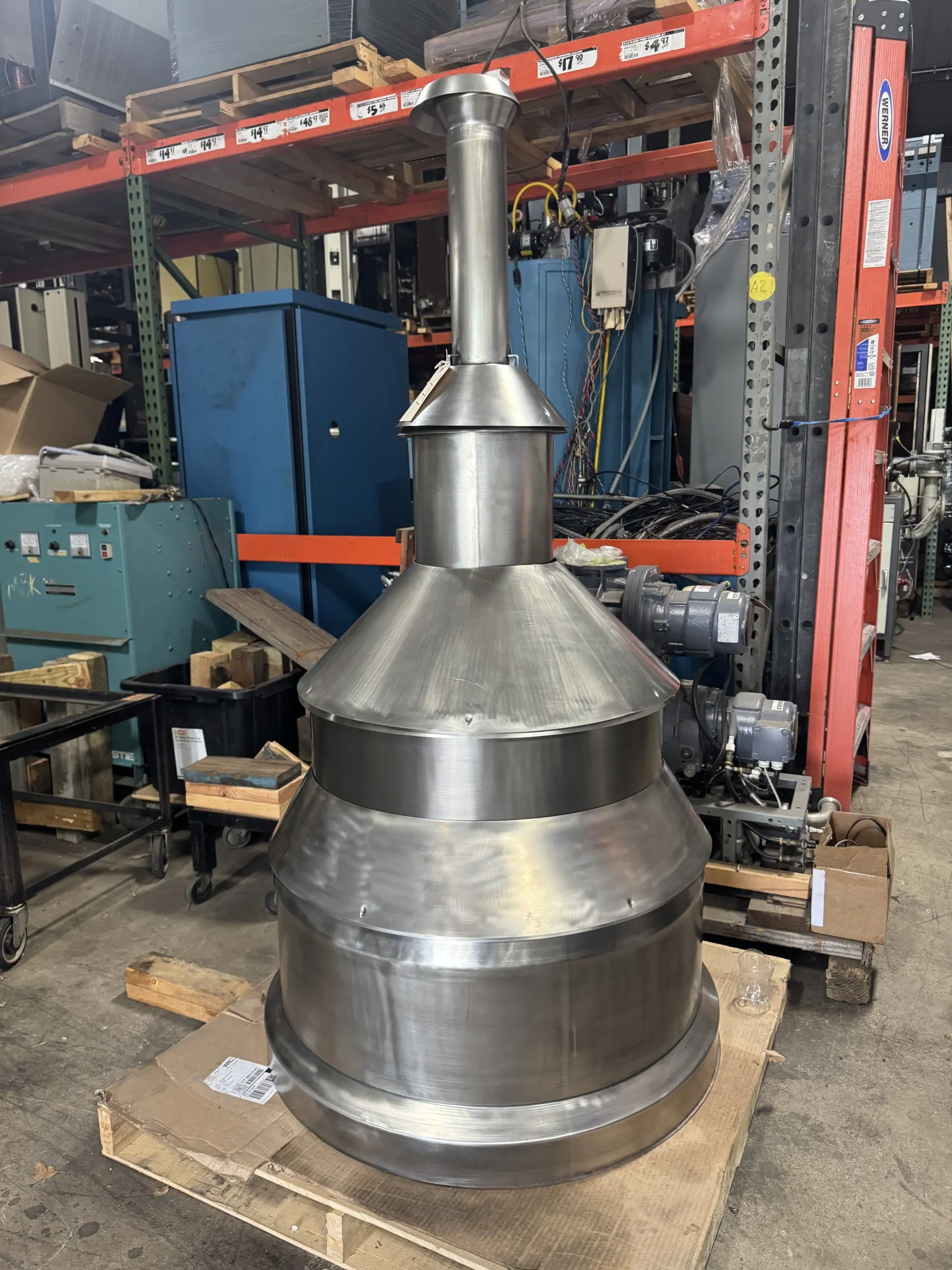

Varian HS-35 Diffusion Pump Stack
Model: HS-35 · Equipment: Complete Pump Stack
Complete Varian HS-35 diffusion pump stack available from YTI for large industrial high-vacuum coating, furnace, processing and production systems. One stack is currently available for purchase.
Pricing
Final pricing depends on the exact components included, equipment condition, refurbishment requirements, configuration and freight.
In Stock
- 1 complete Varian HS-35 pump stack immediately available
- Currently listed by YTI for sale
YTI will confirm exactly which valves, baffle or cold cap, foreline equipment, backing components, controls and hardware are included with the physical stack before final pricing.
What do you need? Choose the equipment path that best matches the project.
Product Description
Complete Varian HS-35 high-vacuum pump stack
YTI currently has one complete Varian HS-35 diffusion pump stack immediately available for purchase. The stack is intended for large industrial high-vacuum systems where an HS-35-class pumping package is required.
The HS-35 is a large diffusion pump designed for demanding industrial processes such as vacuum coating, metallizing, heat treatment, vacuum furnaces, optical coating and other high-throughput applications.
Agilent’s current NHS-35 factory specifications list approximately 28,000 liters per second air pumping speed, approximately 35,000 liters per second for helium and hydrogen, 24 kW pump power and a 35-inch ASA or ISO 1000F inlet.
Those values describe the diffusion pump itself. The performance of an installed pump stack also depends on the high-vacuum valve, baffle or cold cap, chamber conductance, foreline, backing pump, cooling system, controls and physical condition of the complete assembly.
For that reason, YTI should document the actual components included with this physical stack before it is quoted or installed. If the available equipment does not directly match the customer’s system, YTI can also review refurbishment, fabrication, controls and integration requirements.
HS-35 Pump Factory-Reference Specifications
| Manufacturer | Varian / Agilent |
|---|---|
| Model Family | HS-35 / NHS-35 |
| Equipment Listing | Complete Diffusion Pump Stack |
| Pump Type | Oil Diffusion Pump |
| Air Pumping Speed | 28,000 L/s |
| Helium / Hydrogen Speed | 35,000 L/s |
| Operating Range | 9 × 10⁻⁴ to <5 × 10⁻⁸ Torr |
| Maximum Throughput | 25 Torr-L/s in operating range |
| Maximum Forepressure — Full Load | 0.40 Torr |
| Maximum Forepressure — No Load | 0.55 Torr |
| Recommended Backing Pump | ≥300 CFM / 510 m³/hr |
| Fluid Charge | 3 U.S. gal. / 11.3 L |
| Electrical | 3 phase · 50/60 Hz |
| Common Factory Voltages | 240 / 415 / 480 VAC |
| Pump Power | 24,000 W |
| Cooling Water | 4 GPM at 60–80°F |
| Inlet Flange | 35 in. ASA or ISO 1000F |
| Factory Pump Weight | Approx. 1,500 lb / 680 kg |
| Current YTI Availability | 1 complete pump stack immediately available |
These are factory-reference specifications for the HS-35 / NHS-35 diffusion pump itself. They do not define every component, dimension or specification of YTI’s complete used pump stack. YTI should document the actual pump, valves, baffle, foreline, backing equipment, controls, cooling and modifications before the equipment is designed into an installation.
Complete Stack Evaluation
What YTI should confirm before this HS-35 stack is installed
01 · PUMP
HS-35 diffusion pump
Confirm the pump nameplate, flange configuration, jet assembly, boiler condition, heaters, seals, cooling and pump fluid.
02 · HIGH VACUUM VALVE
Isolation hardware
Identify the high-vacuum valve, actuator and sealing surfaces and verify that the assembly operates correctly.
03 · BAFFLE / COLD CAP
Vapor control
Determine what baffle or cold-cap hardware is included and how it affects conductance, backstreaming and cooling requirements.
04 · FORELINE
Backing connection
Inspect foreline plumbing, valves and connections and verify compatibility with the intended mechanical backing system.
05 · BACKING SYSTEM
Rough-vacuum capacity
Verify the connected or planned backing pump provides adequate capacity for the HS-35 and the customer’s process gas load.
06 · CONTROLS
Safety & interlocks
Review heater controls, cooling-water interlocks, pressure protection, sequencing and integration with the customer’s system.
Equipment Options
Purchase the stack, refurbish existing equipment or configure a replacement
Current Inventory
Purchase this HS-35 stack
One complete stack is currently available. YTI can identify the included components, assess condition and determine any required refurbishment before providing final pricing.
Request purchase pricing →Existing Equipment
Refurbish your HS-35 stack
YTI can evaluate a customer-owned HS-35 and connected high-vacuum hardware including pump internals, heaters, seals, valves, baffles, cooling and foreline components.
View diffusion pump refurbishment →System Integration
Configure a replacement stack
If this stack does not directly match the existing installation, send YTI system photos, dimensions and process requirements for replacement, fabrication or integration review.
Request configuration help →Product FAQs
Varian HS-35 pump stack questions
Does YTI currently have a Varian HS-35 pump stack available?
Yes. YTI currently lists one complete Varian HS-35 diffusion pump stack as immediately available for purchase.
Is this HS-35 pump stack available for rental?
YTI’s current inventory listing shows this HS-35 pump stack for sale. The separate standalone HS-35 diffusion-pump listing is currently offered for both sale and rental.
What is included with the HS-35 pump stack?
The exact components should be confirmed from the physical stack. Depending on configuration, a stack may include the diffusion pump, high-vacuum valve, baffle or cold cap, foreline hardware, backing components, cooling connections, controls and support structure.
What is the pumping speed of the Varian HS-35?
Agilent’s current NHS-35 specifications list approximately 28,000 liters per second for air and approximately 35,000 liters per second for helium and hydrogen. Actual pumping speed at the chamber is affected by the complete stack and vacuum system.
How much power does an HS-35 diffusion pump require?
Factory specifications list approximately 24 kW of pump power with three-phase electrical service. The exact heater voltage and configuration of the physical pump in this stack should be verified.
What backing pump is recommended for an HS-35?
Agilent recommends at least approximately 300 CFM of backing capacity for the NHS-35 pump. The required backing system for an installed process can vary with chamber size, gas load, plumbing and operating conditions.
Can YTI refurbish the entire HS-35 pump stack?
YTI can evaluate the diffusion pump and connected vacuum hardware. Work can include pump cleaning, jet-stack inspection, heaters, seals, fluid, high-vacuum valves, baffles, cooling, foreline components, leak testing and related system troubleshooting.
Can this stack replace another HS-35 system?
Possibly, but the model number alone does not guarantee a direct replacement. YTI should compare the inlet flange, stack height, valves, baffle, foreline location, heater voltage, cooling, backing system, controls and available installation space.
What should I send YTI for an HS-35 pump-stack quote?
Send photos of the existing system, current pump model and nameplate, chamber connection, inlet and foreline dimensions, electrical information, backing-pump model, cooling information, process application and required production timeline.
Need a complete HS-35 pumping package?
YTI currently has one HS-35 pump stack available. Send your system information so YTI can confirm the included equipment, compatibility, condition and pricing.
